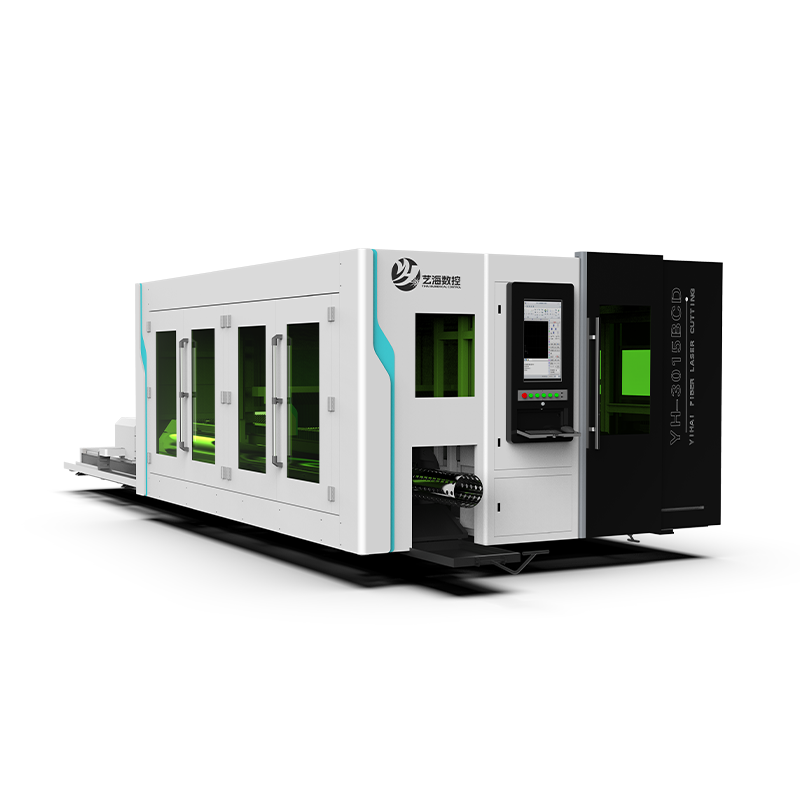

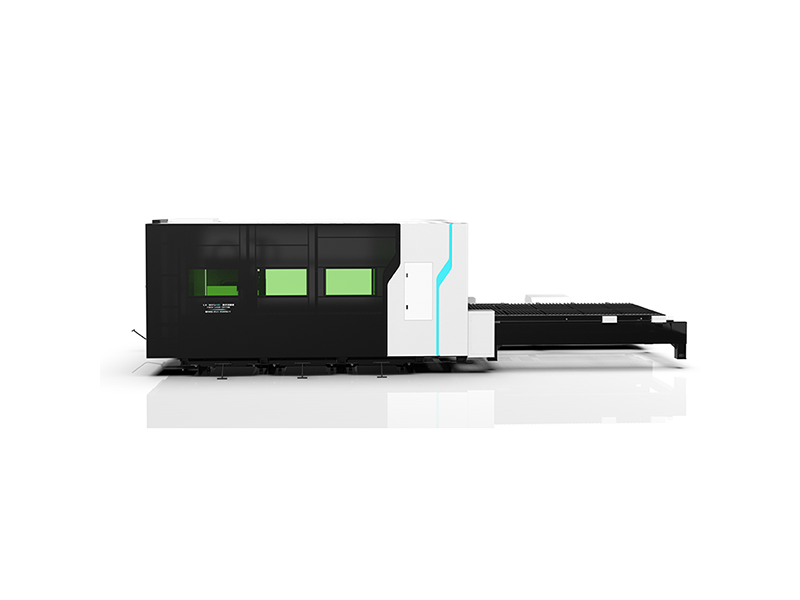

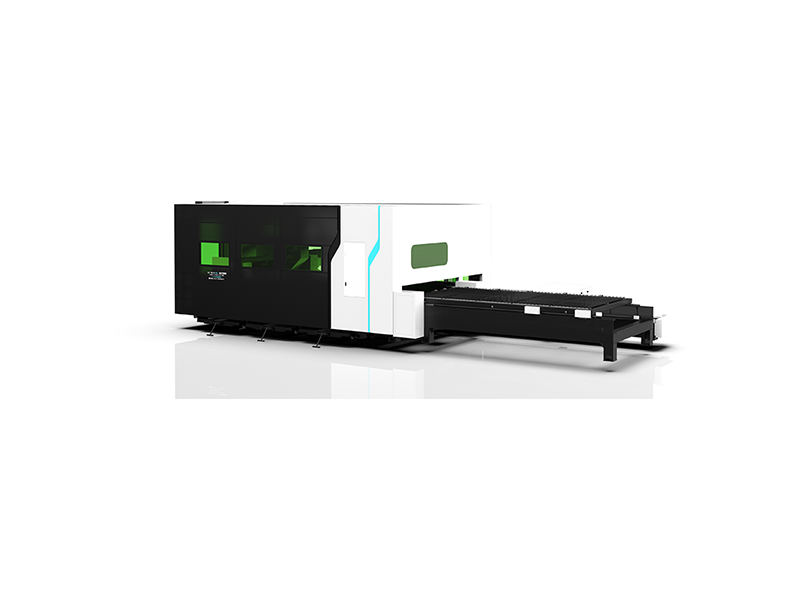

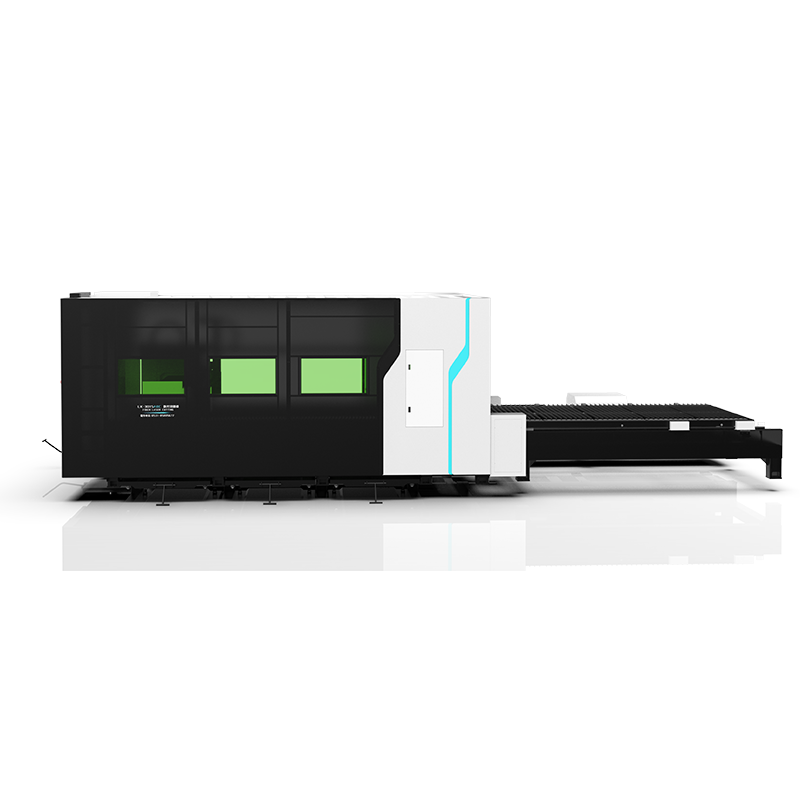

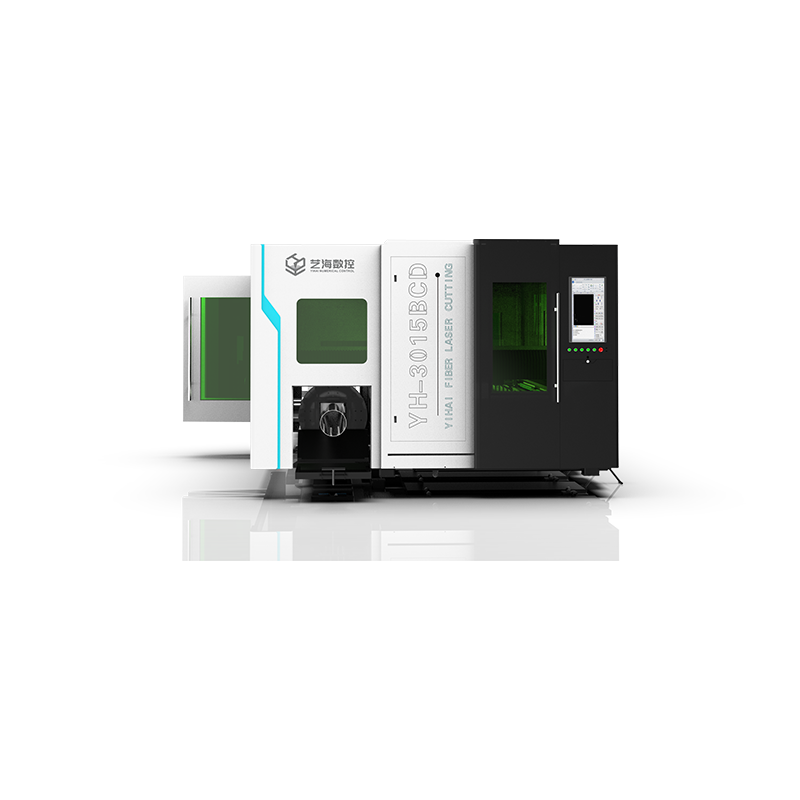

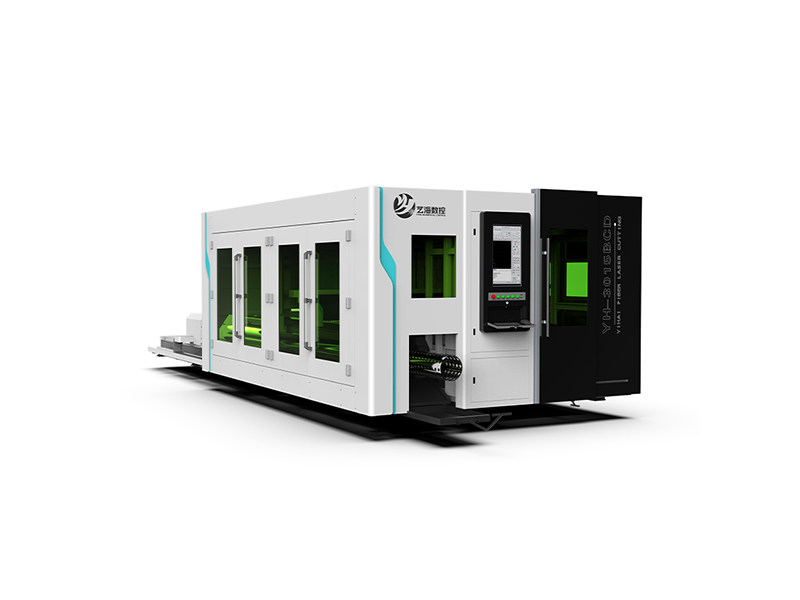

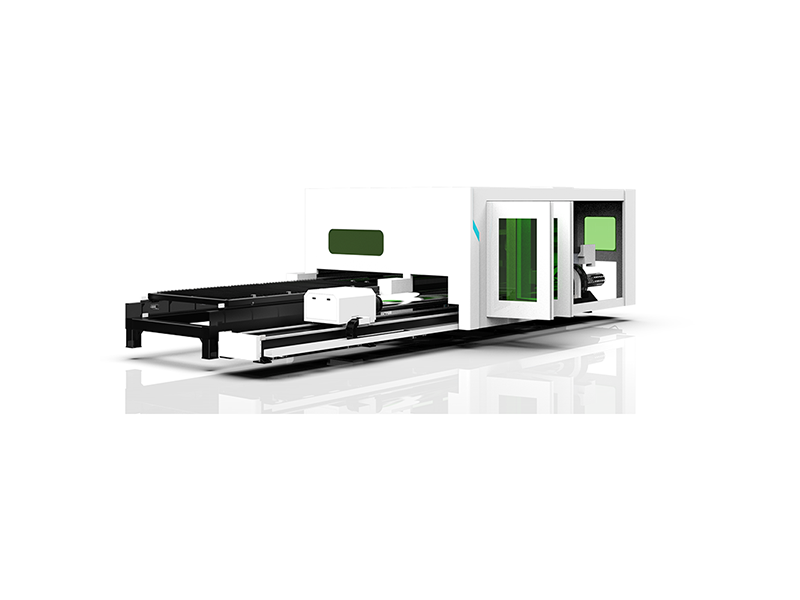

6025 Fully Enclosed Plate & Tube Laser Cutter For Sale
High-power 1kW-6kW fiber laser cutting machine with an efficient exchange table.Dual-use for steel plates &tubes with high laser-processing precision.Get a quote!
PRODUCT FEATURES
Ready-to-Use Finish
Narrow gaps and smooth edges mean your parts go straight from the laser to assembly—no grinding required.
Green &Smart Manufacturing
A fully enclosed,low-noise design that prioritizes operator safety and environmental compliance.
Maximum ROI
Built for heavy-duty,continuous operation to maximize throughput and minimize your long-term processing costs.
High-Speed CAD/CAM Workflow
Rapid,non-contact cutting paired with intuitive software for lightning-fast turnaround times from design to finished part.
Unmatched Capability
From hardened tool steel to exotic alloys,our high-energy laser melts through materials that break conventional tools.
Preservation of Material Quality
Because laser cutting is a non-contact process,it exerts zero mechanical stress on your parts.The concentrated energy beam ensures minimal heat soak,preventing the warping or “bowing”often seen in traditional punching.This ensures that even the most delicate precision parts maintain their structural and aesthetic integrity.
MACHINE PARAMETERS
Model
YH-6025BD
Equipment processing size
2500mm*6000mm
Laser Type
Fiber Laser
Laser working medium
Fiber Optics
Laser wavelength
1070±3nm
Rated output power
≥12000W
Operating temperature
5-40°
Positioning accuracy
≤±0.03mm/m
Repeat positioning accuracy
≤±0.03mm/m
Maximum empty line speed
≤110m/min
No-1oad composite acceleration
1.0G
Machine bed weight
About 14T
Power supply rated parameters
Three-phase AC 380V 50Hz
Total power protection level
IP54
X-axis travel
2530mm
Y-axis travel
6050mm
Z-axis travel
200mm
If you want a price, fully catalogue or other informations, pls contact us
PRODUCT DETAIL
After-sales
Jinan Yihai CNC Equipment Manufacturing Co., Ltd. provides a 2-year
warranty for the entire product purchased by Party A. If the equipment fails
or the parts are damaged during the warranty period (except for human factors
and force majeure), Party B is responsible for free repair, and the required
replacement parts are provided by Party B free of charge (except for consumable
parts and optical fiber cables). After the warranty period, the actual repair
cost will be charged for maintenance.
Shandong Yihai Laser Technology Co., Ltd. visits all users several times a year
and provides technical support services at any time. Party B is responsible
for providing relevant spare parts to Party A for a long time.
After-sales service response time: The telephone response time is 2 hours. After
receiving the user’s repair call, the after-sales engineer will have a clear
reply or arrive at the equipment site within 48 hours.
