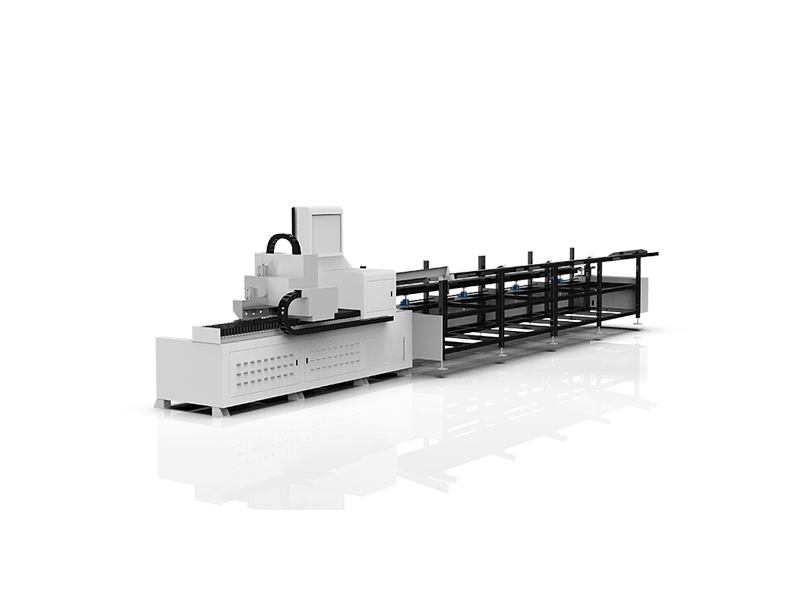

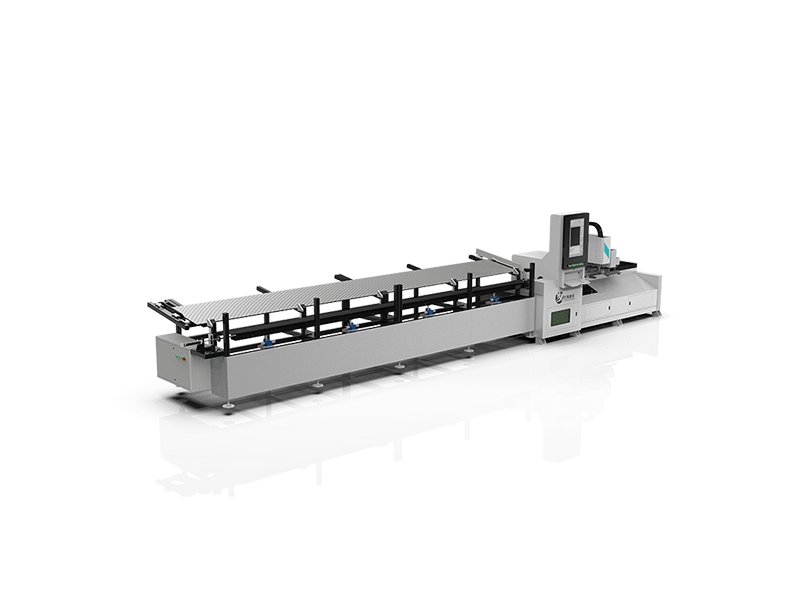

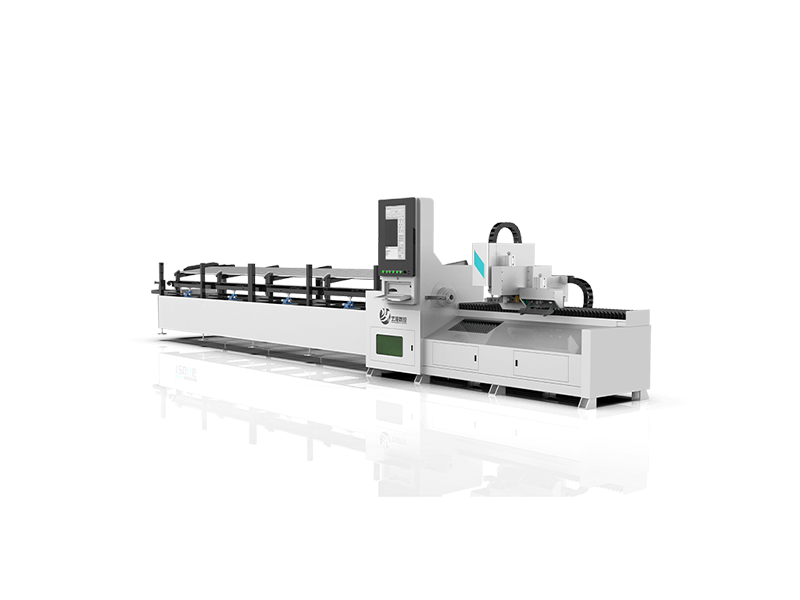

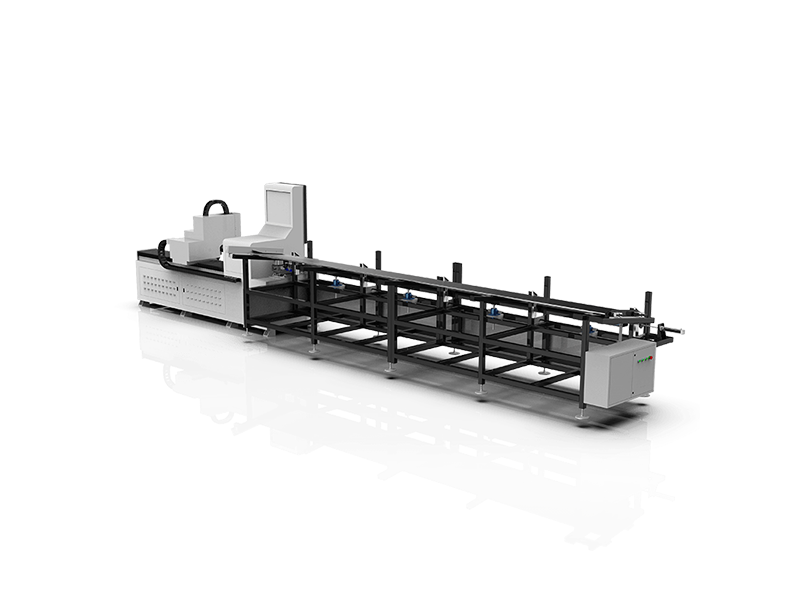

Single chuck multi-function laser pipe cutting machine
A two-chuck structure can realize small tail material processing.Auxiliary support devices ensure effective support,prevent pipe sagging,and ensure processing accuracy.Auxiliary feeding design to save labor.
PRODUCT FEATURES
Ready-to-Use Finish
Narrow gaps and smooth edges mean your parts go straight from the laser to assembly—no grinding required.
Green &Smart Manufacturing
A fully enclosed,low-noise design that prioritizes operator safety and environmental compliance.
Maximum ROI
Built for heavy-duty,continuous operation to maximize throughput and minimize your long-term processing costs.
High-Speed CAD/CAM Workflow
Rapid,non-contact cutting paired with intuitive software for lightning-fast turnaround times from design to finished part.
Unmatched Capability
From hardened tool steel to exotic alloys,our high-energy laser melts through materials that break conventional tools.
Preservation of Material Quality
Because laser cutting is a non-contact process,it exerts zero mechanical stress on your parts.The concentrated energy beam ensures minimal heat
soak,preventing the warping or “bowing”often seen in traditional punching.This ensures that even the most delicate precision parts maintain their structural and aesthetic integrity.
MACHINE PARAMETERS
Model
YH-360C6
Equipment processing size
6000mm*360mm
Laser Type
Fiber Laser
Laser working medium
Fiber Optics
Laser wavelength
1070±3nm
Rated output power
≥12000W
Operating temperature
5-40°
Positioning accuracy
≤±0.03mm/m
Repeat positioning accuracy
≤±0.03mm/m
Maximum empty line speed
≤110m/min
No-1oad composite acceleration
1.0G
Power supply rated parameters
Three-phase AC 380V 50Hz
Total power protection level
IP54
Allowable material length
6300mm
Allowable material diameter
360mm
Workbench operating height
1000mm
If you want a price, fully catalogue or other informations, pls contact us
