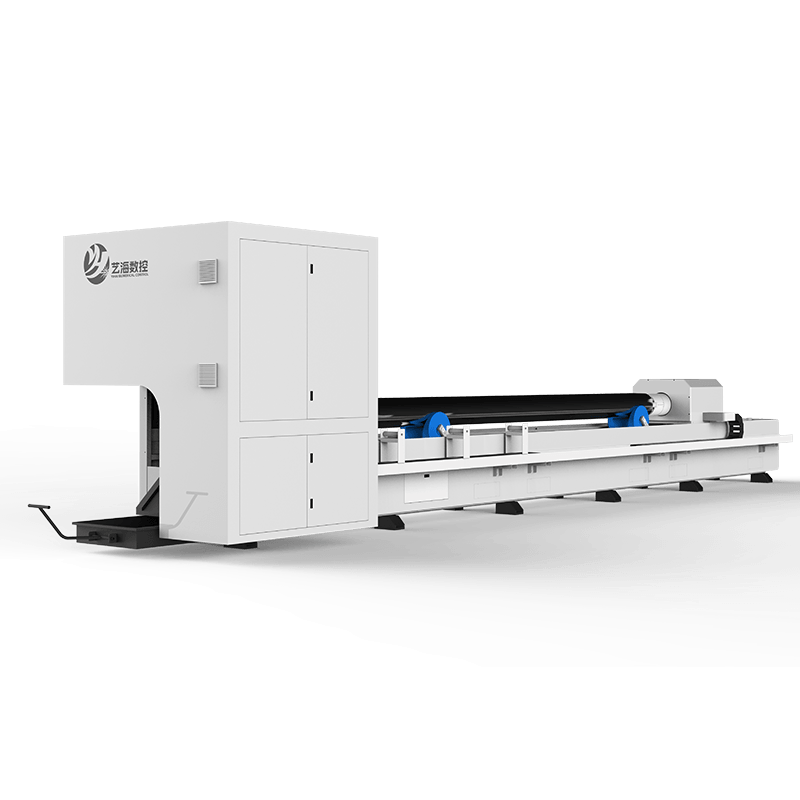

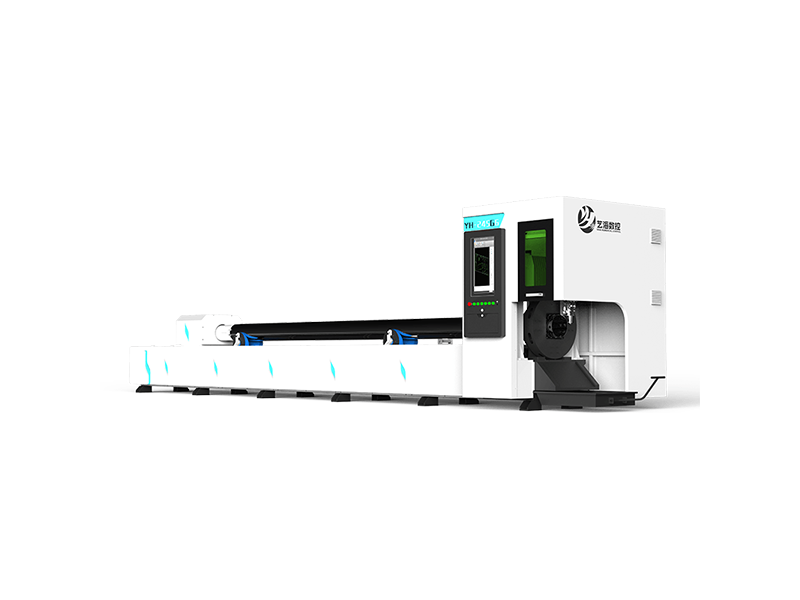

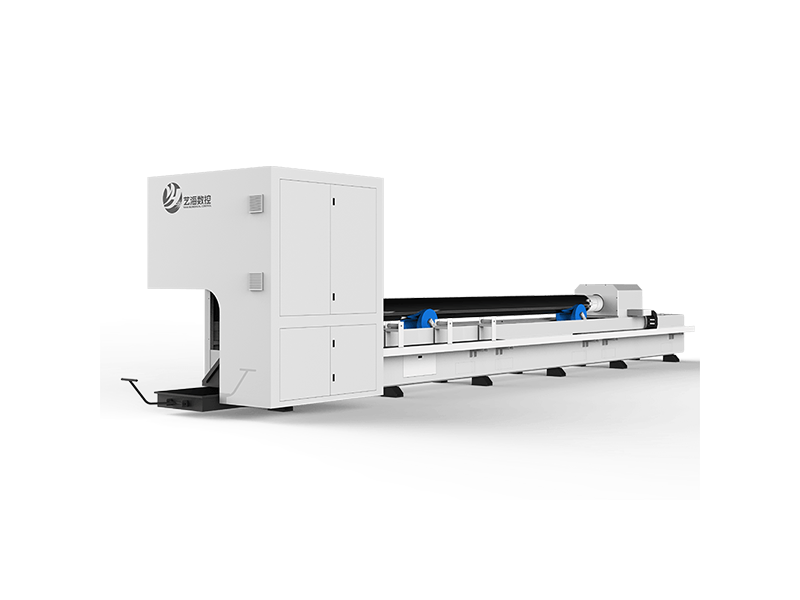

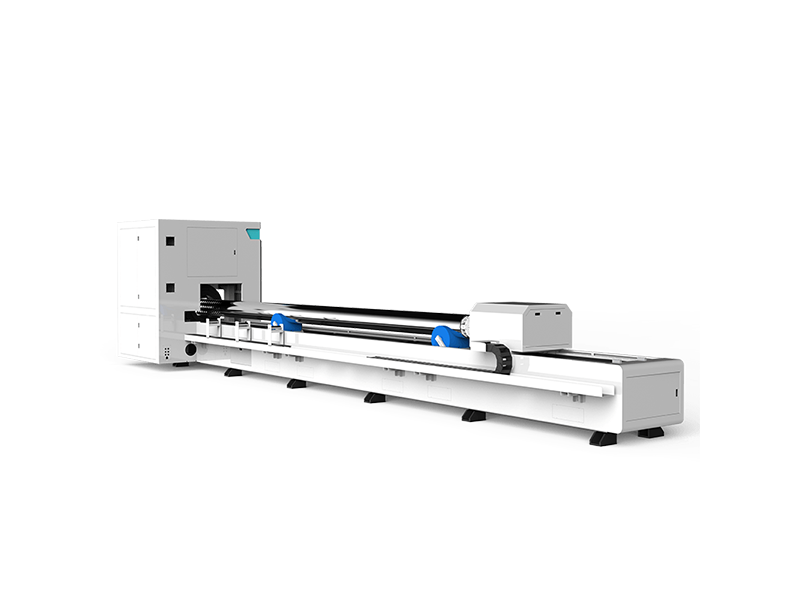

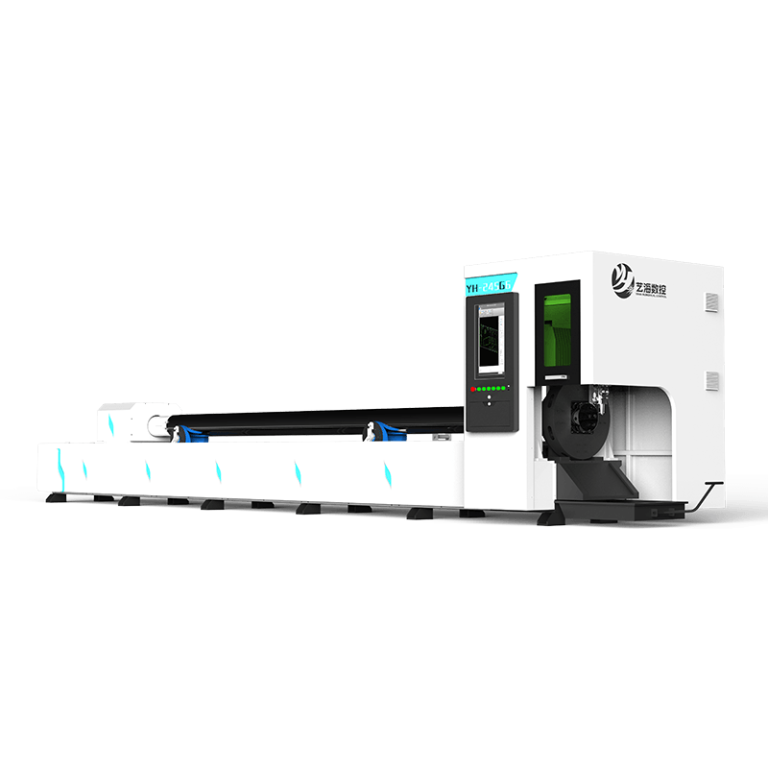

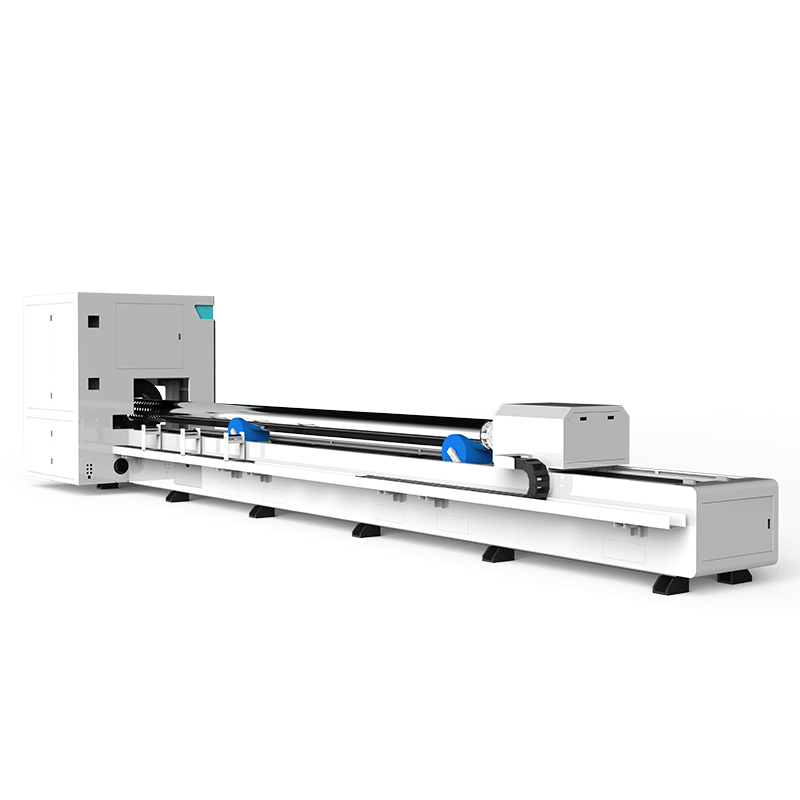

Tube Laser Cutting Machine

Tube Laser Cutting Machine

The Tube Laser Cutting Machine is a high-efficiency fiber laser cutting solution designed for precise cutting and processing of various metal tubes and profiles. It is widely used for cutting round tubes, square tubes, rectangular tubes, oval tubes, angle steel, channel steel, and other special-shaped metal pipes with high speed and excellent accuracy.

Equipped with an advanced CNC control system and high-precision chuck clamping technology, the machine ensures stable feeding, smooth rotation, and accurate cutting performance. It can process stainless steel, carbon steel, aluminum alloy, galvanized steel, brass, and other metal materials with clean cutting edges and minimal deformation, significantly reducing secondary processing requirements.

The machine is suitable for industries such as metal furniture, fitness equipment, steel structures, automotive parts, construction engineering, agricultural machinery, and metal fabrication. With features including automatic loading and unloading, intelligent nesting, high-speed cutting, low energy consumption, and easy operation, the Tube Laser Cutting Machine helps manufacturers improve productivity, reduce labor costs, and achieve efficient intelligent production.

Tube laser cutting machine

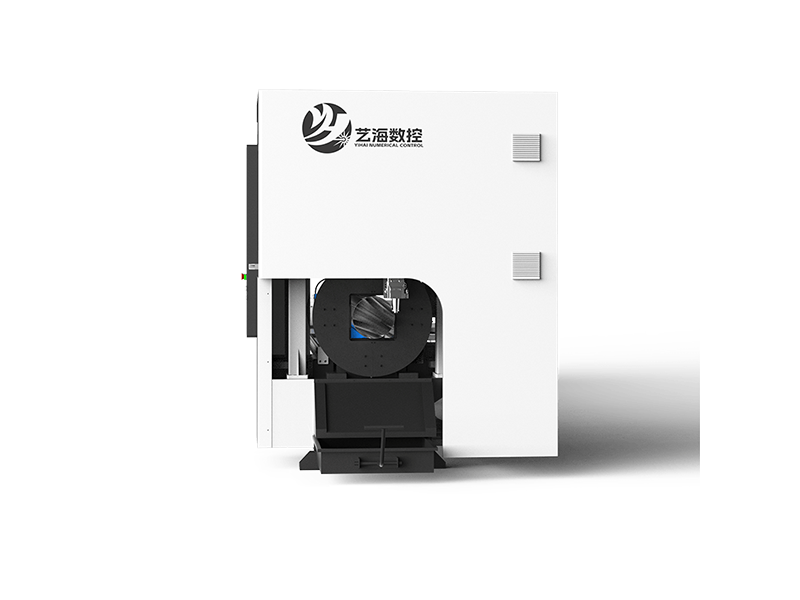

The YIHAI LASER fiber laser cutting machine features a pneumatic chuck designed for cutting metal tubes in various forms,including square,round,and H-shaped profiles.It excels at precisely cutting long and heavy pipes,ensuring no material waste and optimizing the overall utilization of resources.

PRODUCT FEATURES

Ready-to-Use Finish

Narrow gaps and smooth edges mean your parts go straight from the laser to assembly—no grinding required.

Green &Smart Manufacturing

A fully enclosed,low-noise design that prioritizes operator safety and environmental compliance.

Maximum ROI

Built for heavy-duty,continuous operation to maximize throughput and minimize your long-term processing costs.

High-Speed CAD/CAM Workflow

Rapid,non-contact cutting paired with intuitive software for lightning-fast turnaround times from design to finished part.

Unmatched Capability

From hardened tool steel to exotic alloys,our high-energy laser melts through materials that break conventional tools.

Preservation of Material Quality

Because laser cutting is a non-contact process,it exerts zero mechanical stress on your parts.The concentrated energy beam ensures minimal heat soak,preventing the warping or “bowing”often seen in traditional punching.This ensures that even the most delicate precision parts maintain their structural and aesthetic integrity.

MACHINE PARAMETERS

Model

YH-160C6

Equipment processing size

6000mm*160mm

Laser Type

Fiber Laser

Laser working medium

Fiber Optics

Laser wavelength

1070±3nm

Rated output power

≥12000W

Operating temperature

5-40°

Positioning accuracy

≤±0.03mm/m

Repeat positioning accuracy

≤±0.03mm/m

Maximum empty line speed

1.0G

Power supply rated parameters

Three-phase AC 380V 50Hz

Total power protection level

IP54

Allowable material length

6300mm

Allowable material diameter

160mm

Workbench operating height

1000mm

If you want a price, fully catalogue or other informations, pls contact us
